Surron Light Bee X 16-Inch Rear Wheel Upgrade – 2.15 Rim

Upgrade your Surron Light Bee X with a wider 16-inch rear wheel designed for serious off-road riding.

Combined with the standard 19-inch front wheel, this creates the popular 19/16 motocross-style wheel setup. The smaller rear rim allows you to run a higher-volume 16-inch off-road tyre, giving the bike improved rear traction, better bump absorption and a more planted dirt-bike feel.

Why upgrade to a 16-inch rear wheel?

• Improved off-road traction from a wider, higher-volume rear tyre
• Better performance over rough terrain thanks to the additional tyre sidewall
• More 16-inch motocross tyre options than the factory 19-inch rear wheel
• More planted rear-end feel through loose dirt, mud and technical terrain
• Creates the popular 19-inch front and 16-inch rear Light Bee setup
• Complete built wheel makes tyre changes and wheel swaps easier

Specifications

Tyre selection

A 90/100-16 off-road rear tyre is a popular choice for this conversion. Actual tyre width and profile can vary between manufacturers, so swingarm, chain and mudguard clearance should always be checked before riding.

The tyre, tube and rim lock are sold separately.

What is included?

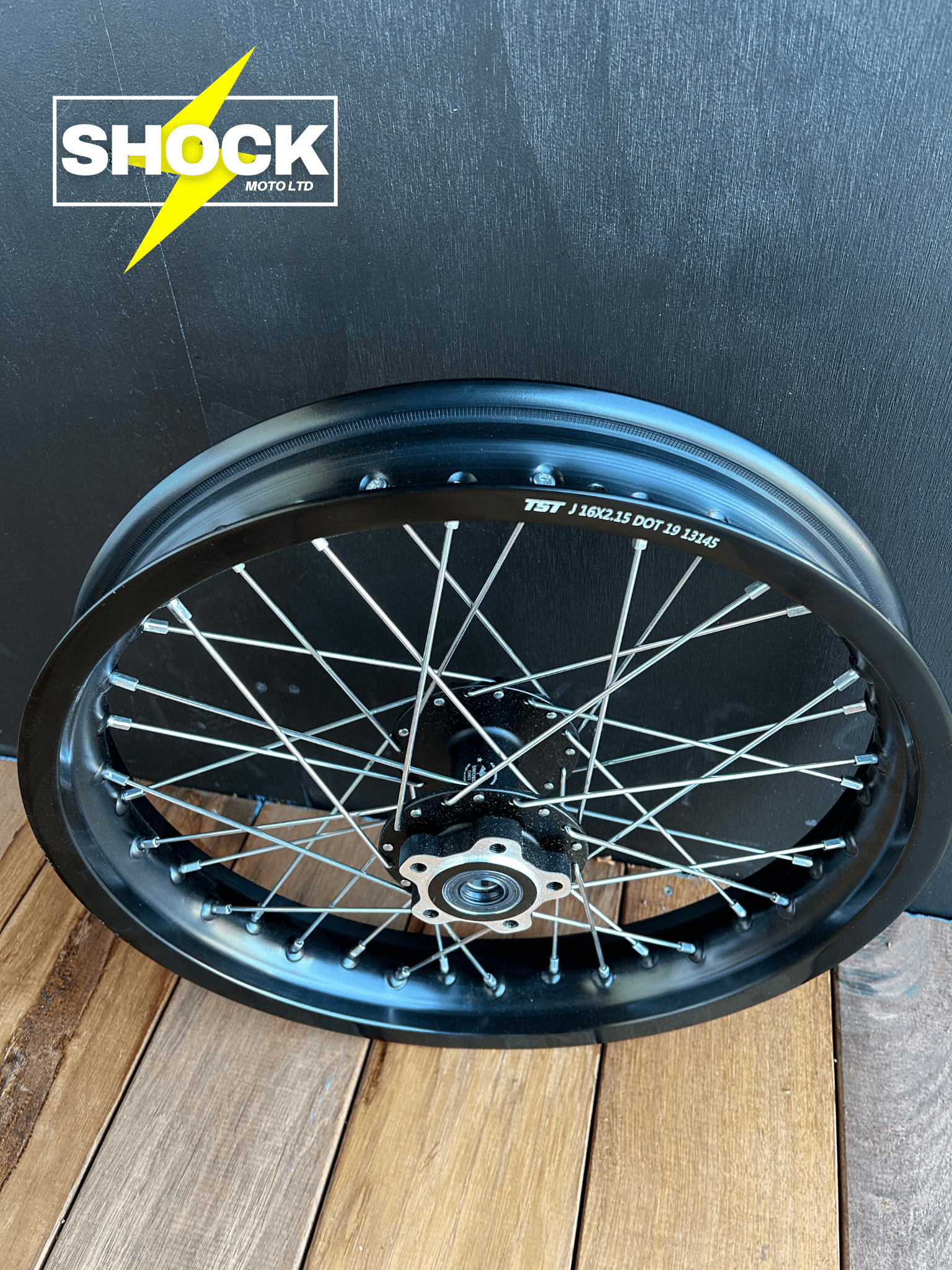

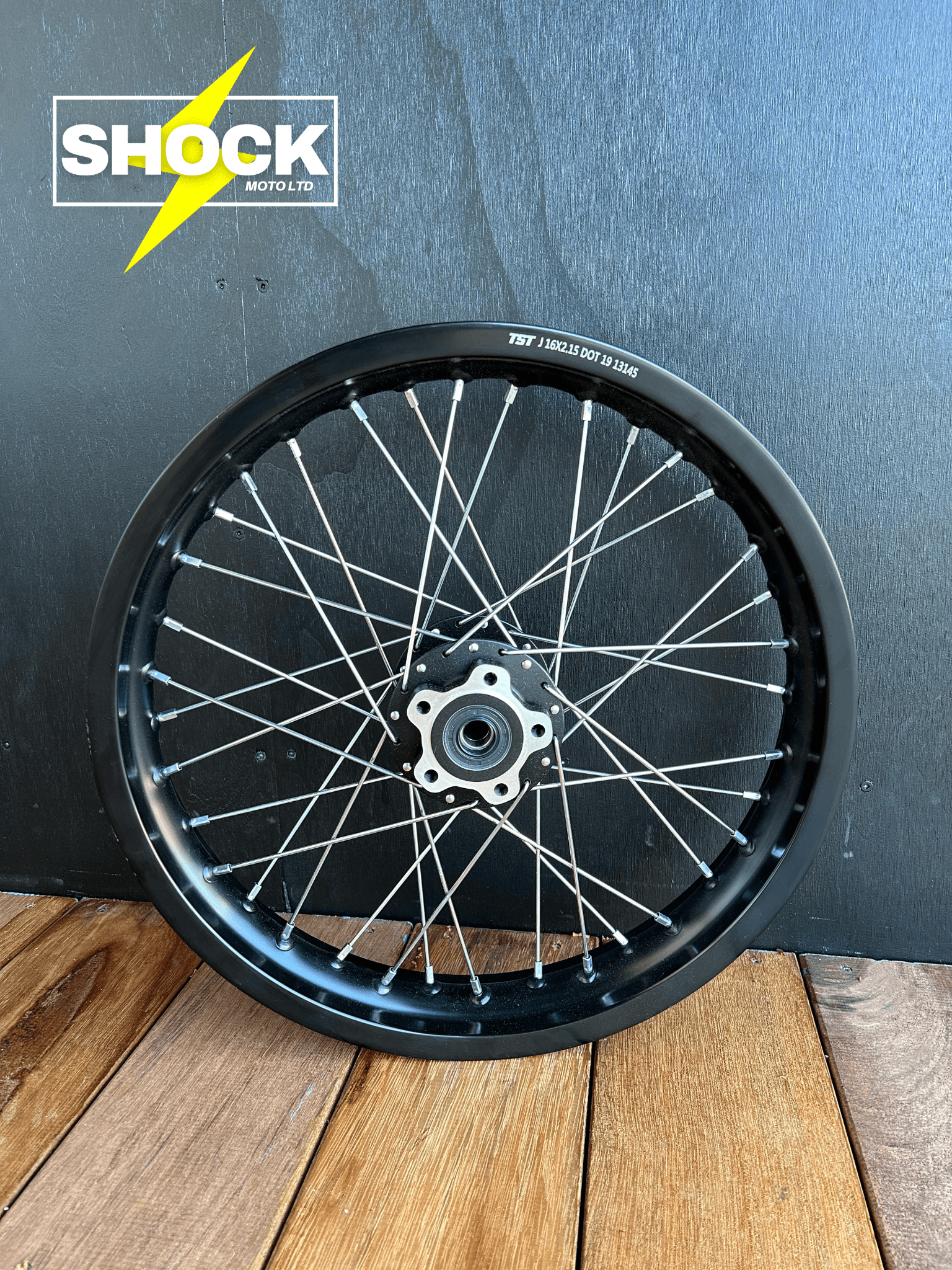

• One complete 16 x 2.15-inch rear wheel assembly
• Rear hub, rim and spokes
• Bearings and spacers

What needs to be transferred?

Your existing rear brake rotor, sprocket and compatible mounting hardware will need to be transferred from the original wheel unless replacement components are purchased separately.

Not included

• Rear tyre
• Inner tube
• Rim lock
• Brake rotor
• Rear sprocket
• Wheel spacers
• Rotor or sprocket mounting bolts

Installation

Professional installation is recommended. Before riding, check wheel alignment, spacer placement, chain tension, brake rotor alignment, tyre clearance and spoke tension.

Spoke tension should be checked after the first ride and periodically as part of regular off-road maintenance.

Please note: Changing wheel and tyre dimensions can affect ride height, handling, gearing and speedometer accuracy. This wheel is intended primarily for off-road use.

Not sure whether this wheel or a particular tyre will suit your Light Bee? Contact Shock Moto before ordering and we’ll help you choose the right setup.
